CTP Constructeur creates machines for bitumen emulsions : graves plants, liming unit, recycling and storage.

We provide you fixed or removable plants, liming units and recycling, emulsion and bitumen storage or also mobile charging stations.

fabricant d’engins de chantier-entretien des routes-centrales de graves-logiciels de dosage et pilotage-entretien de la voirie-emulsion de bitume-fournisseur d’equipements de chantier

The company CTP Constructeur has a varied range of machines for the implementation of bitumen emulsions on your work sites, but also for cold coating of your materials.

Fixed graves plants

These are plants for the production of graves-emulsion, concrete, cement, continuous concrete, reconstituted and humidified grave, storable asphalt, asphalt concrete with emulsion and limed materials.

TOPFIX

Graves plant continuous phase-shifted mixing.

Production capacity of 100 to 700 tons/h
Production of hydraulic graves, bituminous graves and limed graves according to configuration
Version gantry tunnel or version gantry cantilevered
Phase shifted coating
Ergonomic human / machine interface with supervision
Direct loading under the mixer
Control software /interactive and efficient control (SAPHIR)

EVOLUMIX

Graves plant with continuous mixing.

Technical details :

Production capacity of 100 to 700 tons/h
Battery of 2, 3 or 4 hoppers
Continuous production of hydraulic grave, limed treatment
Dosage group, water, émulsion dope integrated to chassis
Control software /interactive and efficient control (SAPHIR)
Ergonomic human / machine interface with supervision
Skid version easily movable with minimum public work
Adjustable padle angle of 0 to 360°
A scalable installation in TOPFIX

TOPFIX COMPACTE

Removable graves plant with continuous phase-shifted mixing.

Technical details :

Production capacity of 100 to 250 tons/h
Production of hydraulic graves, and limed treatment according to configuration
Mixer specially designed for graves emulsions (exclusive)
Battery of 2, 3 or 4 hoppers
Extractor with band of 650 mm
Binder and dope dosing group integrated into the chassis
Ergonomic human / machine interface with supervision
Control software / interactive and efficient control (SAPHIR)
Adjustable padle angle of 0 to 360°

Removable graves plants

Movable plants, transferable for the road, in 1 or 2 parcels.

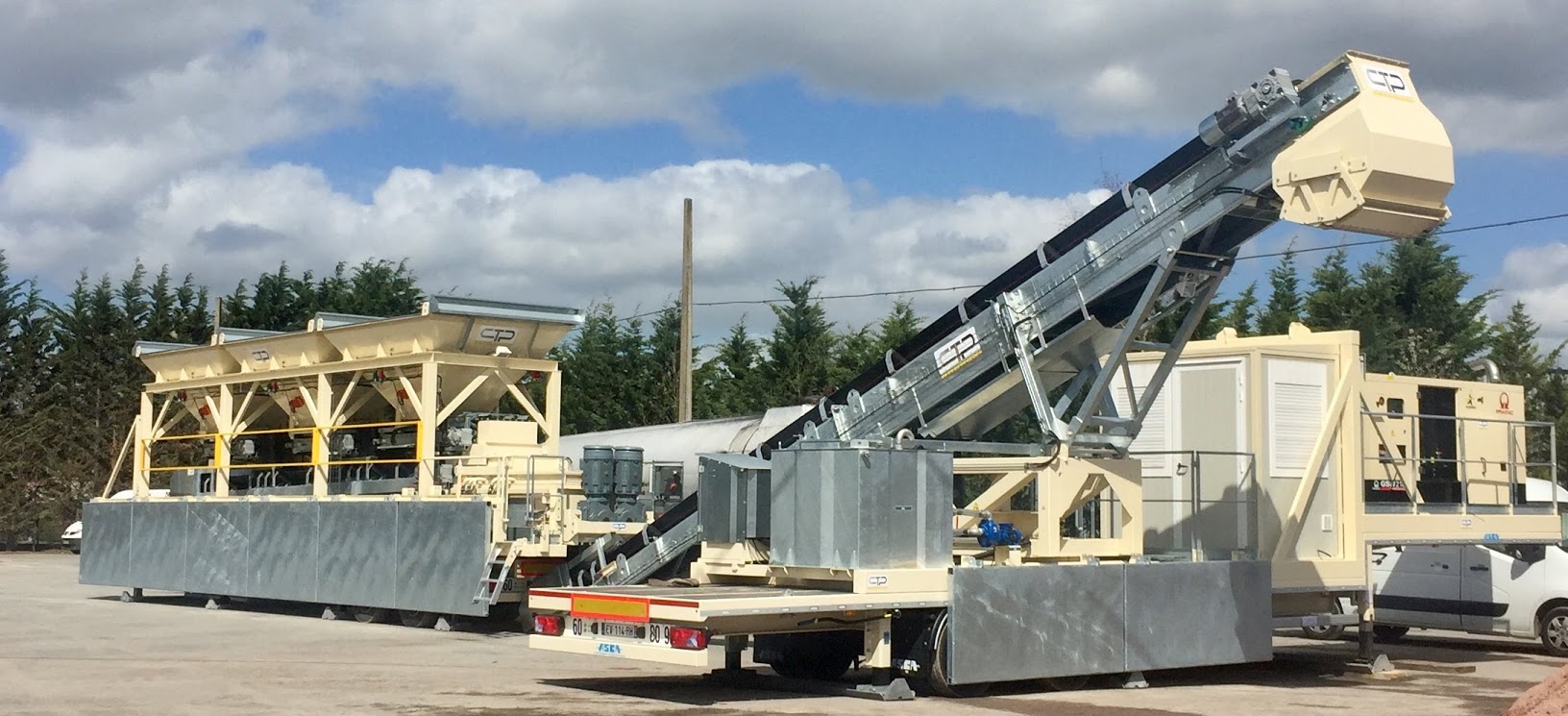

TOPMIX

Hypermobil plant, continuous phase shifted mixing.

Production capacity of 100 to 250 tons/h
Production of hydraulic graves, bituminous graves and limed graves according to configuration
Phase shifted coating
Fully autonomous installation (without crane)
Loading under T.A.S of 4 m
Control software / interactive and efficient control (SAPHIR)

COMPOMIX

Hypermobil plant (90 km/h in 1 parcel) with continuous phase shifted mixing.

Technical details :

Production capacity of 80 to 140 tons/h
Single coating
Production of hydraulic graves and bituminous graves
Phase shifted coating
Quick production start
Control software / interactive and efficient control (SAPHIR)
Binder and dope dosing group integrated into the chassis (according to the configuration)
Continuous and powerful mixer

TRANSMIX

Hypermobile plant (25 km/h in 2 parcels) with continuous mixing.

Technical details :

Production capacity of 100 to 140 tons/h
Production of hydraulic graves and bituminous graves
Control software / interactive and efficient control (SAPHIR)
Continuous mixer in high position, single coating
Binder and dope dosing group integrated into the chassis

TIPTOPMIX

Hypermobile plant (70 km/h in 2 parcels) with double or single phase shifted mixing.

Technical details :

Production capacity of 100 to 250 tons/h
Production of hydraulic graves, bituminous graves and limed gravest according to configuration
Control software /interactive and efficient control (SAPHIR)
Mixer long and powerful
Binder and dope dosing group integrated on the chassis

Recycling and liming units

Recycling units for excavated material work sites and treatment of quarry waste by mixing and liming.

CHAUMIX V1

Transferable unit on skid, liming by continuous mixing.

Technical details :

Production capacity of 80 to 150 tons/h
Treatment of excavated material work sites with quicklime and quarry waste
Granulometry : 0 to 80 mm
Daily rate of 640 to 1 200 tons
Liming unit with supply by sieve, shovel or loader
Hopper specially adapted for difficult materials
Control software /interactive and efficient control (JADE)
Extractor with volumetric dosage
Implementation without crane
Width 2.50 m

CHAUMIX V2

Hypermobile unit (90km/h in 1 parcel) with liming by continuous mixing.

Technical details :

Production capacity of 100 to 200 tons/h
Treatment of excavated material work sites with quicklime and quarry waste
Granulometry : 0 to 80 mm
Daily rate of 800 to 1 600 tons
Supply by sieve, shovel or charger
Hopper specially adapted for difficult materials
Extractor with wide width weight dosing
Continuous mixing with two powerful parallel shaft
Control software /interactive and efficient control (JADE)
Integrated water tank and dosing group
Width 2.50 m

VALORIMIX

Liming of quarry waste by continuous mixing.

Technical details :

Production capacity up to 500 tons/h
Regulation hopper or supply by charger
Weight dosage materials and quicklime controlled
Reclining mixer according to the configuration
Granulometry up to 200 mm (according to the configuration)
Mixing tank with hatches according to the configuration
Control software /interactive and efficient control (JADE)
Recycle up to 100% of your waste
Unrivaled return on investment

Bitumen emulsion storage

Modular or container storage units for bitumen or bitumen emulsion.

MODULSTOCK

Modular storage tank for bitumen or bitumen emulsion.

Production capacity from 40 to 70 m³
Autonomous and adaptative pumping group
Electrical cabinet and control
Drip tray integrated
Cladding, insulation and heating
Compatible with Gold software
Optional loading gangways

COMBISTOCK

Container storage tank for bitumen emulsion.

Production capacity from 40 to 50 m³
Container 40 feet
Pumping group integrated
Integrated retention tank
Arm loading
Electric heating
Pumping group isolated and heated
Compatible with gold software

MOBILSTOCK

Mobile charging stations

Production capacity of 1 200 t/h
Material receiving hopper of 12 m³
Articulated conveyor on a telescopic platform

For all information concerning our machines dedicated to the production of materials or the storage of bitumen emulsion, don’t hesitate to contact us by phone, email or through the contact form below.
